TECHNICAL DATA

ES

Hose size

4"6S

Swaging range(mm)

Φ 6-170

Master die shoe length(mm)

120

Standard voltage

380V/50Hz

Motor power

5.5kW

Optional voltage &motor

220V/2.2kW

Pump(l/min)

36L

Number of swagings/hour

800

Noise level (dB)

75

Max opening(mm)

Φ+35mm

Electric limit switch

12560

Electric limit switch

√

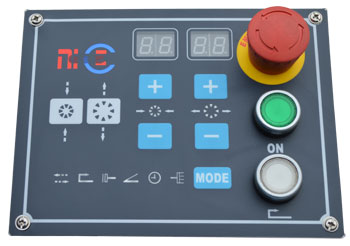

Electronic control

√

Electric pedal

√

Manual change

√

Dlmenslons LxWxH(mm)

1100x700x1200

Weight without oil

980Kg
